Power Amplifier

• Class A/B amplifier with more than 225/335 watts per channel (8/4 Ohm)
• MOS-FET high current amplifier: 12 MOS-FET transistors per channel deliver a maximum of 180
• Ampere per channel
• Heavy-duty toroid transformer with 1000 VA
• Three separate power supplies: Mains, processor unit, silent power supply for input circuit
• Analogue & consistently balanced input stages, entirely DC coupled

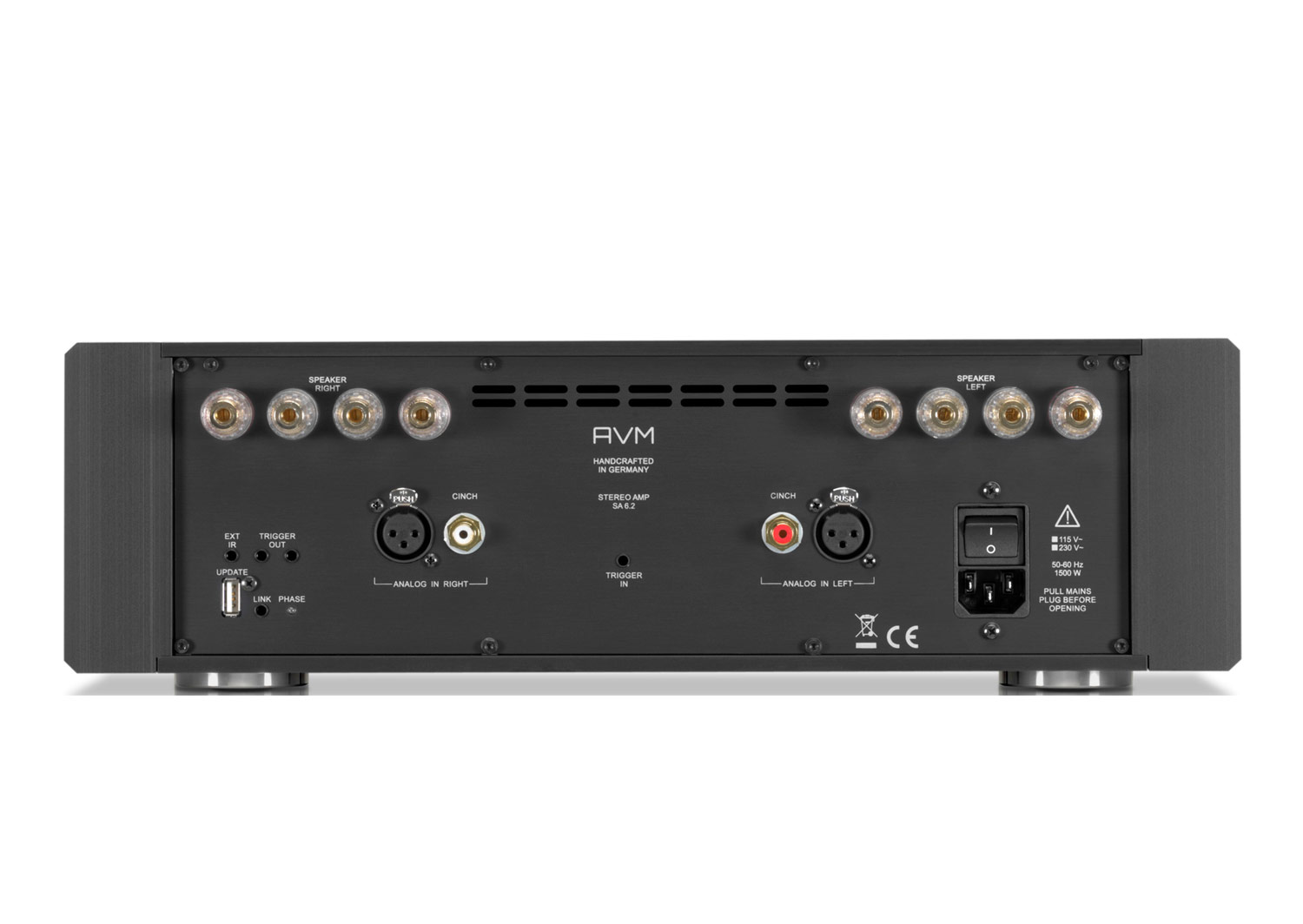

• High level inputs: XLR + Cinch
• 2 x pair of speaker terminals for Bi Wire configuration
• AIR-Trigger (AVM Intelligent Remote), trigger input 10V
• Mains phase indicator
• Stand-by consumption <0,5W
• Large, blue graphics display
• Comprehensive menu functions (adjustable sensitivity, peak power and much more)
• Housing options: Aluminium silver, black optional chrome front panel
• Delivered in aircraft-grade flight case
• Dimensions (WxHxD): 430 mm x 135 mm x 410 mm
• Weight: ca. 21 kg

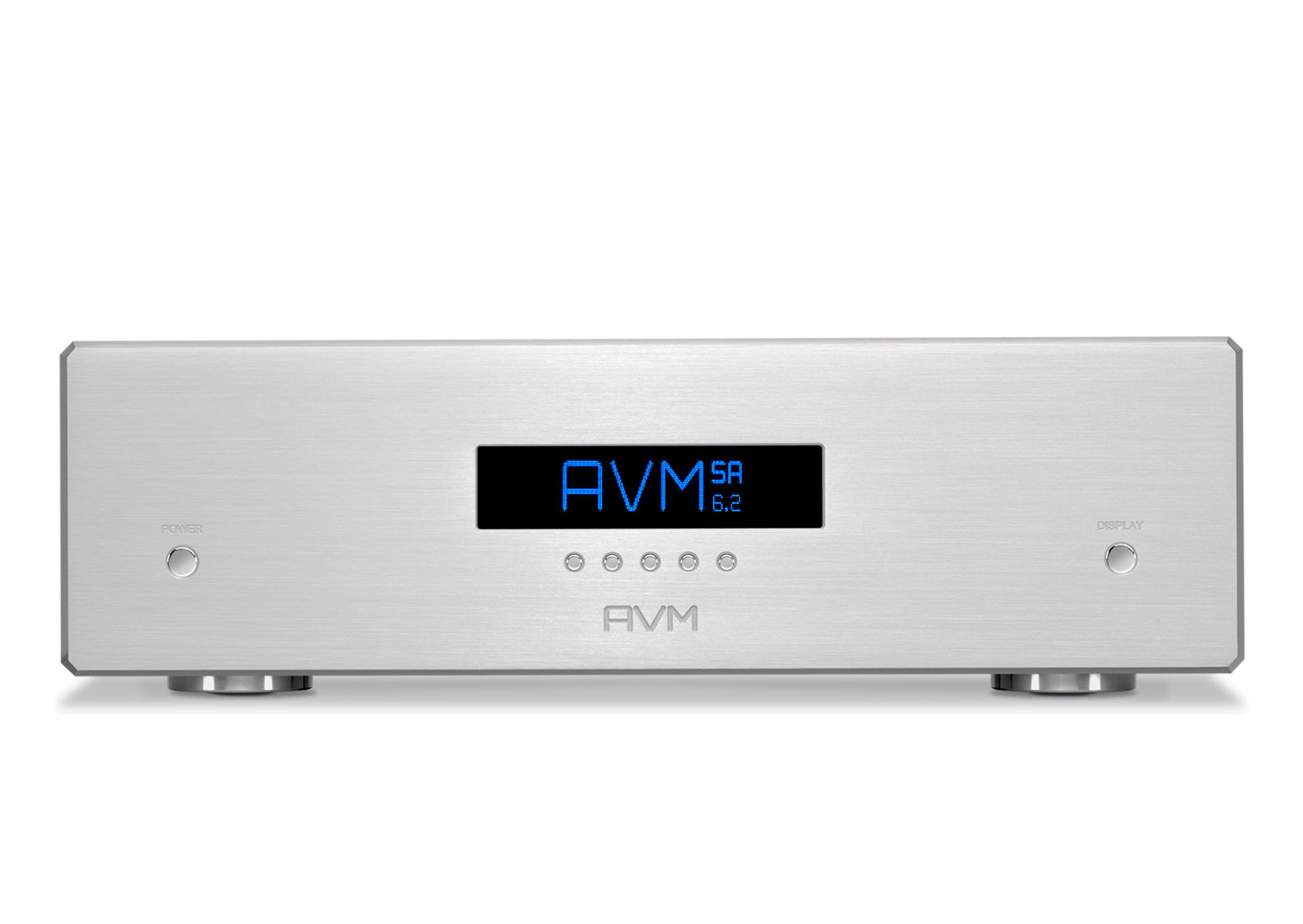

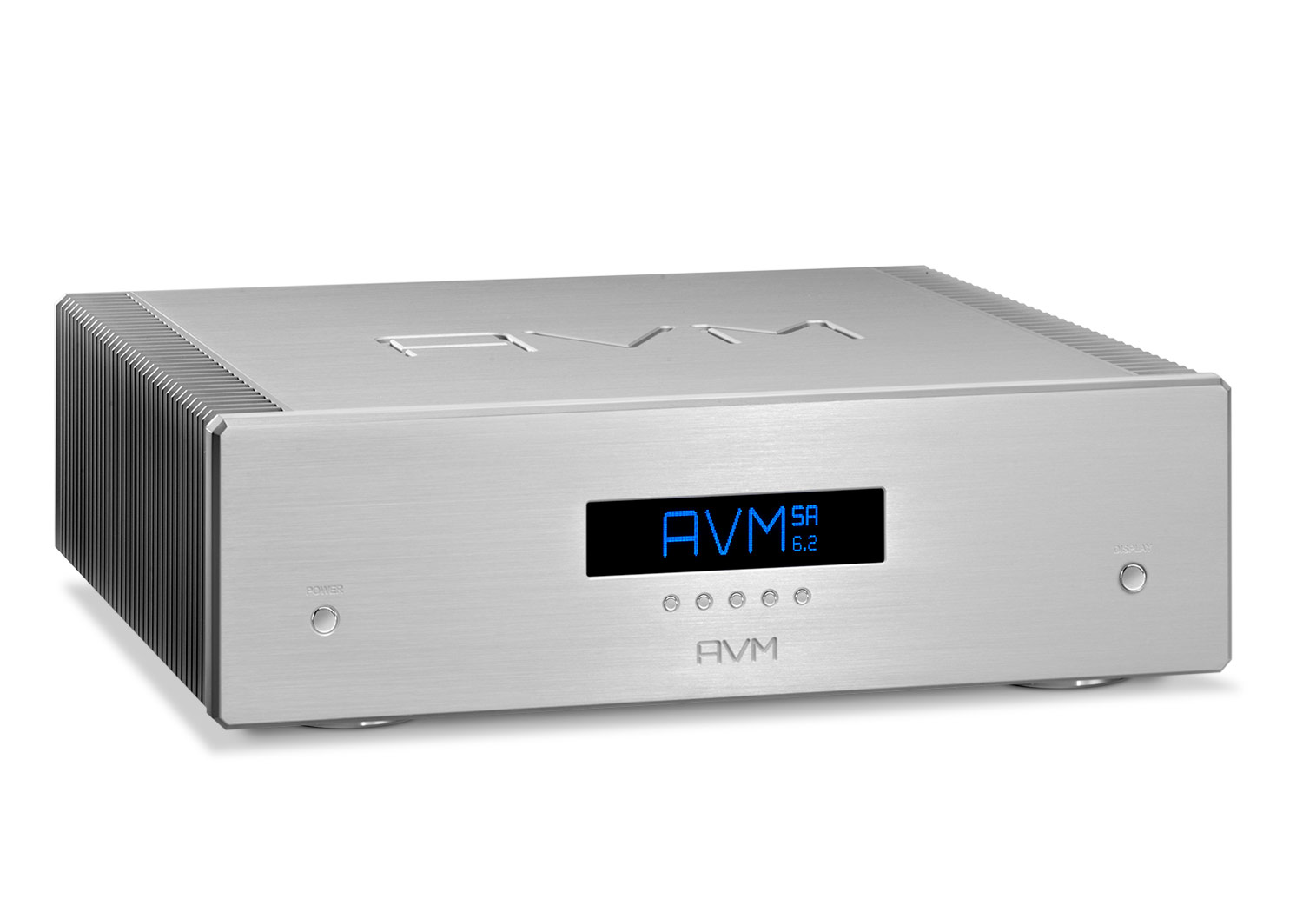

The Ovation SA 6.2 Power Amplifier delivers high power levels without loss of speaker control even with Hi-Fi speakers challenging With more than 335 Watts into 4 Ohms, it is comfortable for reproducing any type of music, even at high listening levels.

Optimal listening quality

The new generation power blocks in the Ovation range have been developed by music lovers for music lovers to satisfy the highest demands in music reproduction. Forget noise and distortion and enjoy warm and powerful music reproduction whatever Hifi speakers you use, whatever style of music you prefer and whatever volume you like to listen to.

High-end finishes

This excellent musical quality goes hand in hand with a very neat finish: the cabinet is made of fully polished anodized aluminium. The power transformers (2 x 1000 VA, 2 x 120 VA) are mounted in a shielded box which ensures that no mechanical vibration or parasitic electric field can influence the electronic circuits of the power blocks .

AVM Ovation SA 6.2 power amplifiers, like all AVM products, have been carefully developed and assembled by AVM engineers in Malsch, Germany.

Specifications
