N-03T (Silver) [D/A Converter]

Esoteric

D/A Converter

Added to cart!

Link copied to clipboard!

You can now share it with others

D/A Converter

Quantity

เครื่อง

In Stock

สั่งซื้อขั้นต่ำ 5,000.- รับส่วนลด 15% สูงสุด 50,000.- บาท

CODE

PYN15

฿418,000

฿440,000-฿22,000

Network section
ETHERNET	1 (1000BASE-T)
Supprted file formats
PCM lossless	FLAC, Apple Lossless (ALAC) , WAV, AIFF, MQA
DSD lossless	DSF, DSDIFF (DFF)
Compresed audio	MP3, AAC (m4a container)
USB DRIVE	2 (Front, Rear)
Supported file system	FAT32, exFAT, NTFS
	Single partition
	USB2.0 or later recommended
Maximum power supply	0.5A
Input signal formats
Linear PCM	44.1k to 384kHz, 16bit / 24bit / 32bit (stereo) • Only integer format file supported at 32bit
DSD	2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (stereo)
Supported file formats
PCM Lossless	FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA
DSD Lossless	DSF, DSDIFF (DFF) , DoP
Compressed audio	MP3, AAC (m4a container)

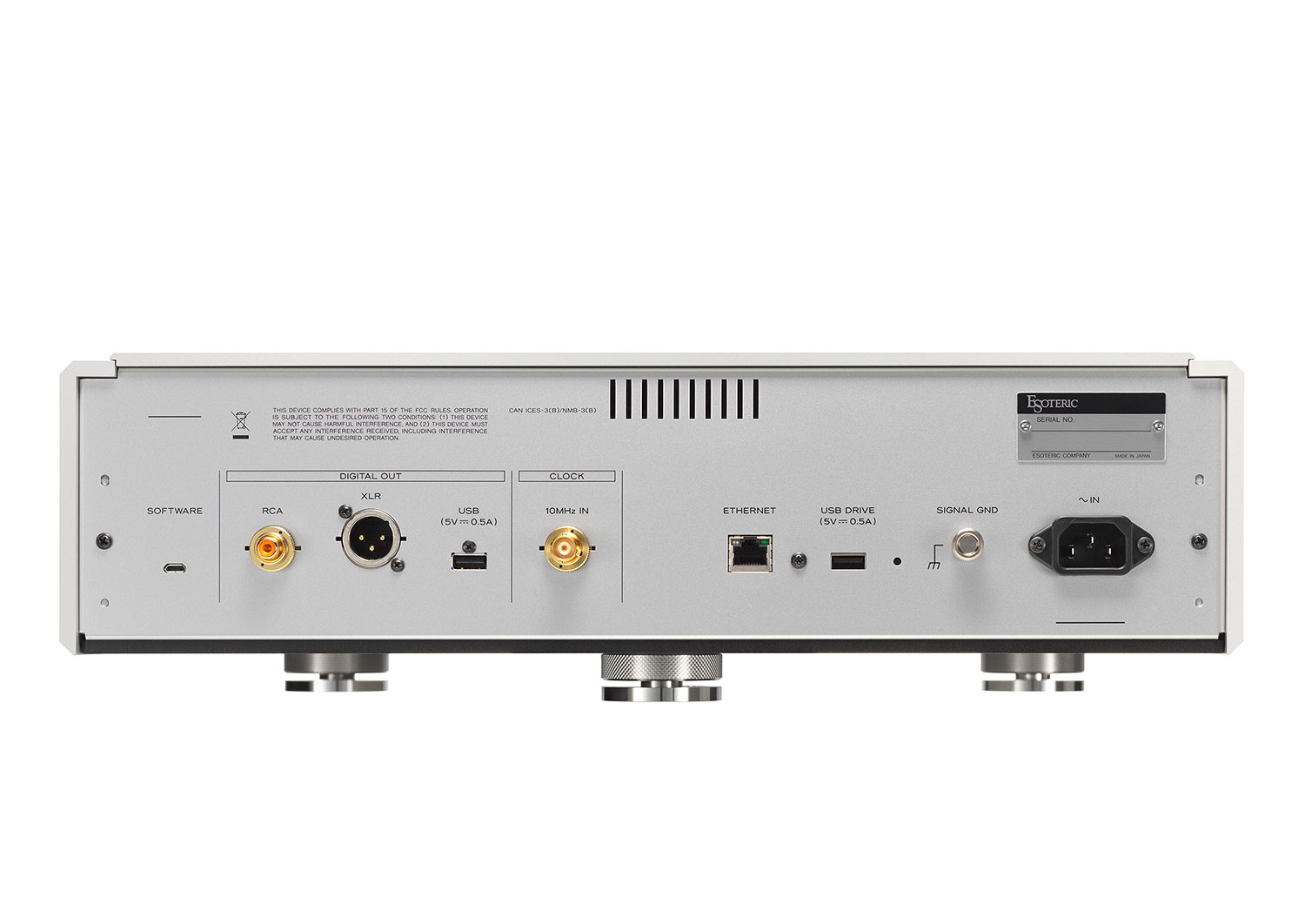

Digital audio outputs
USB	1 (USB2.0 standard)
XLR	1
Output level	3.0Vrms (110Ω load)
Output audio formats
Linear PCM	44.1k to 192kHz, 16bit / 24bit
DSD	2.8MHz (DoP format)
RCA	1
Output level	0.5Vrms (75Ω load)
Output audio formats
Linear PCM	44.1k to 192kHz, 16bit / 24bit
DSD	2.8MHz (DoP format)
Clock sync input
BNC	1
Input impedance	50Ω
Frequencies that can be input	10MHz (±10ppm)
Input level
Rectangle wave	equivalent to TTL levels
Sine wave	0.5 to 1.0Vrms (50 to 75Ω)
General
Power supply
	AC 220 - 240V, 50/60Hz
	AC 120V, 60Hz
	AC 220V, 60Hz
Power consumption	31W
External dimensions (W×H×D)	445 × 131 × 360mm 17-⅝" × 5-¼" × 14-¼" (including protrusions)
Weight	17kg / 37-½ lb
Included accessories	Power cord × 1 Felt pads × 3 Owner's manual × 1 Warranty card × 1
