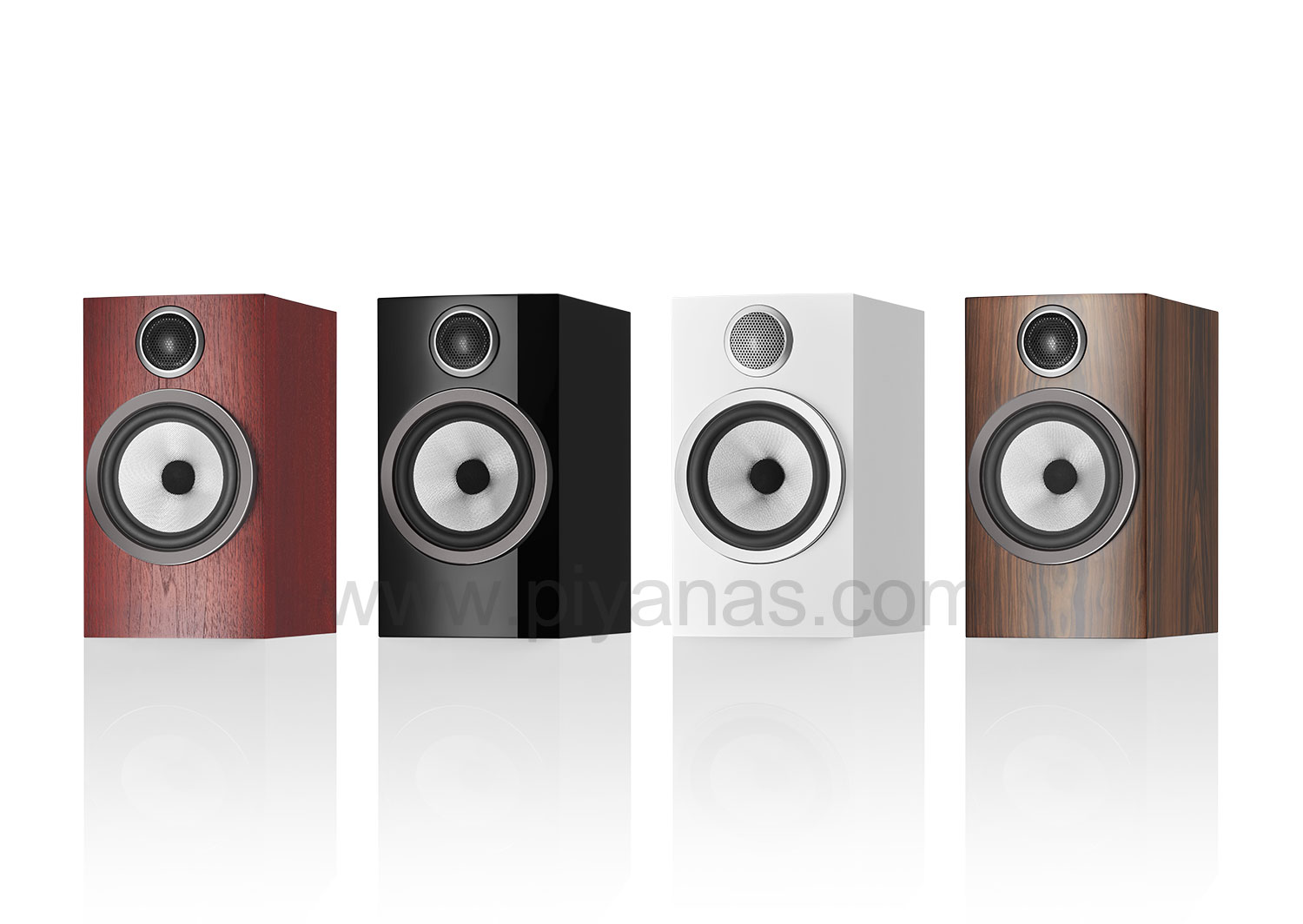

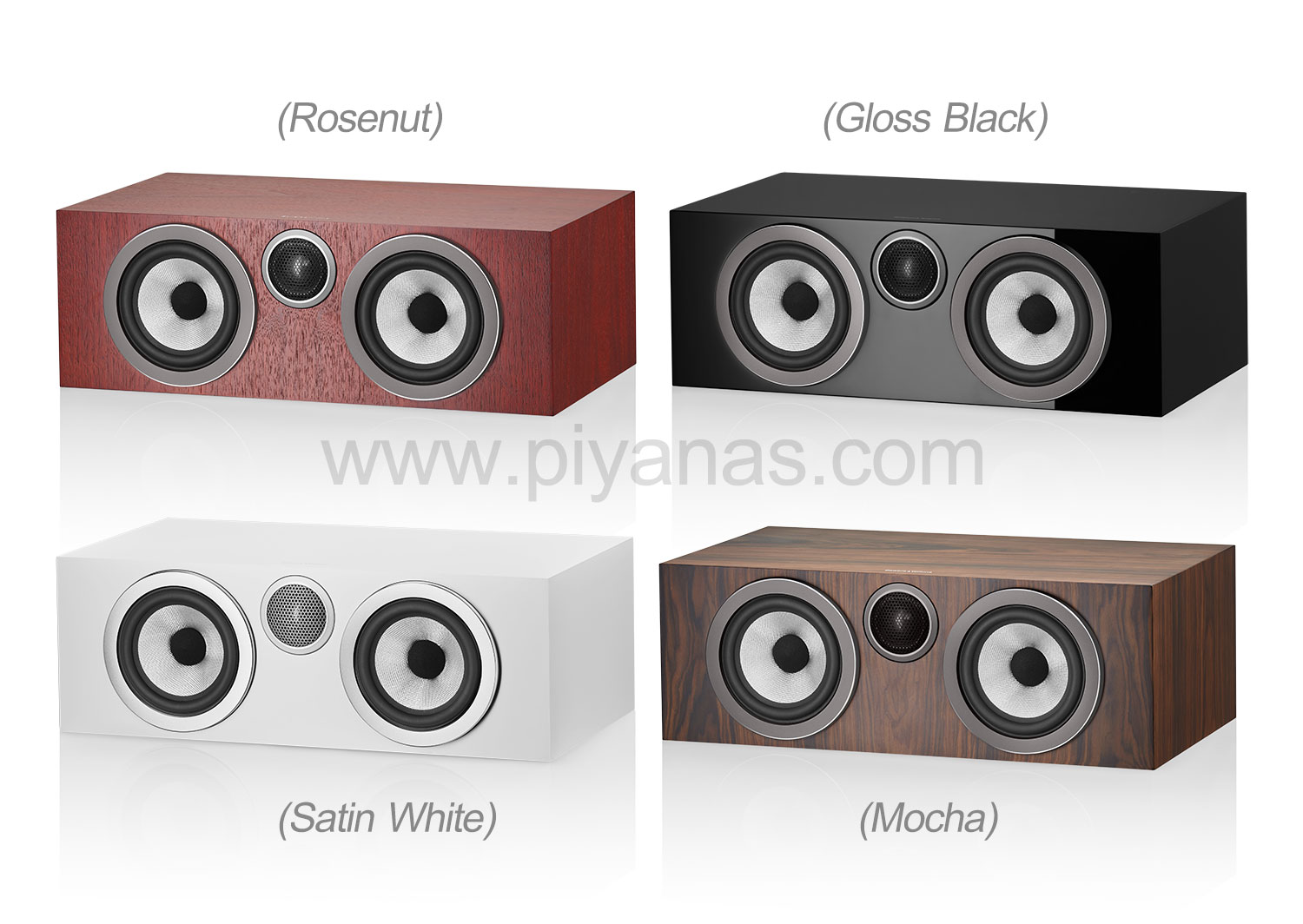

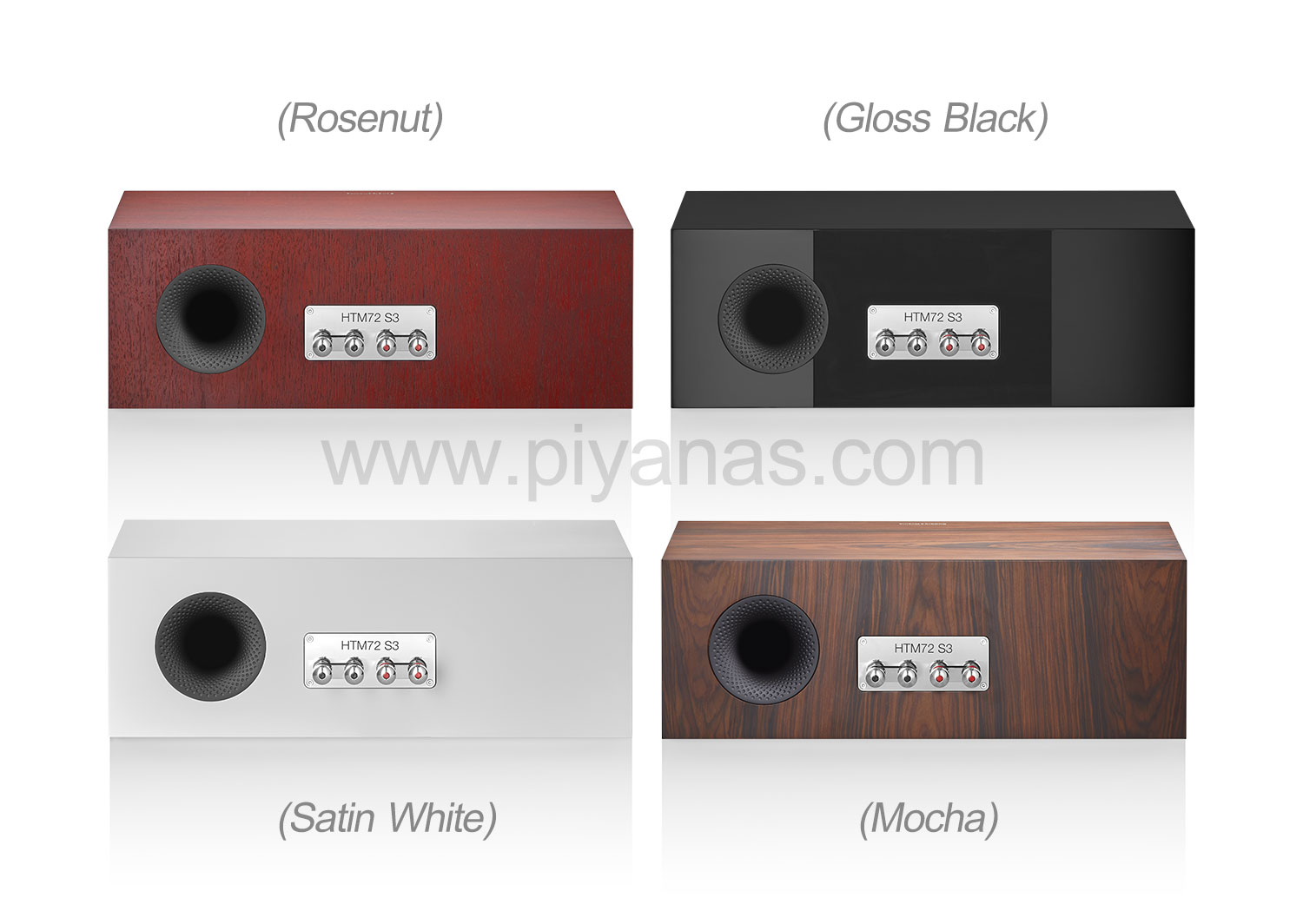

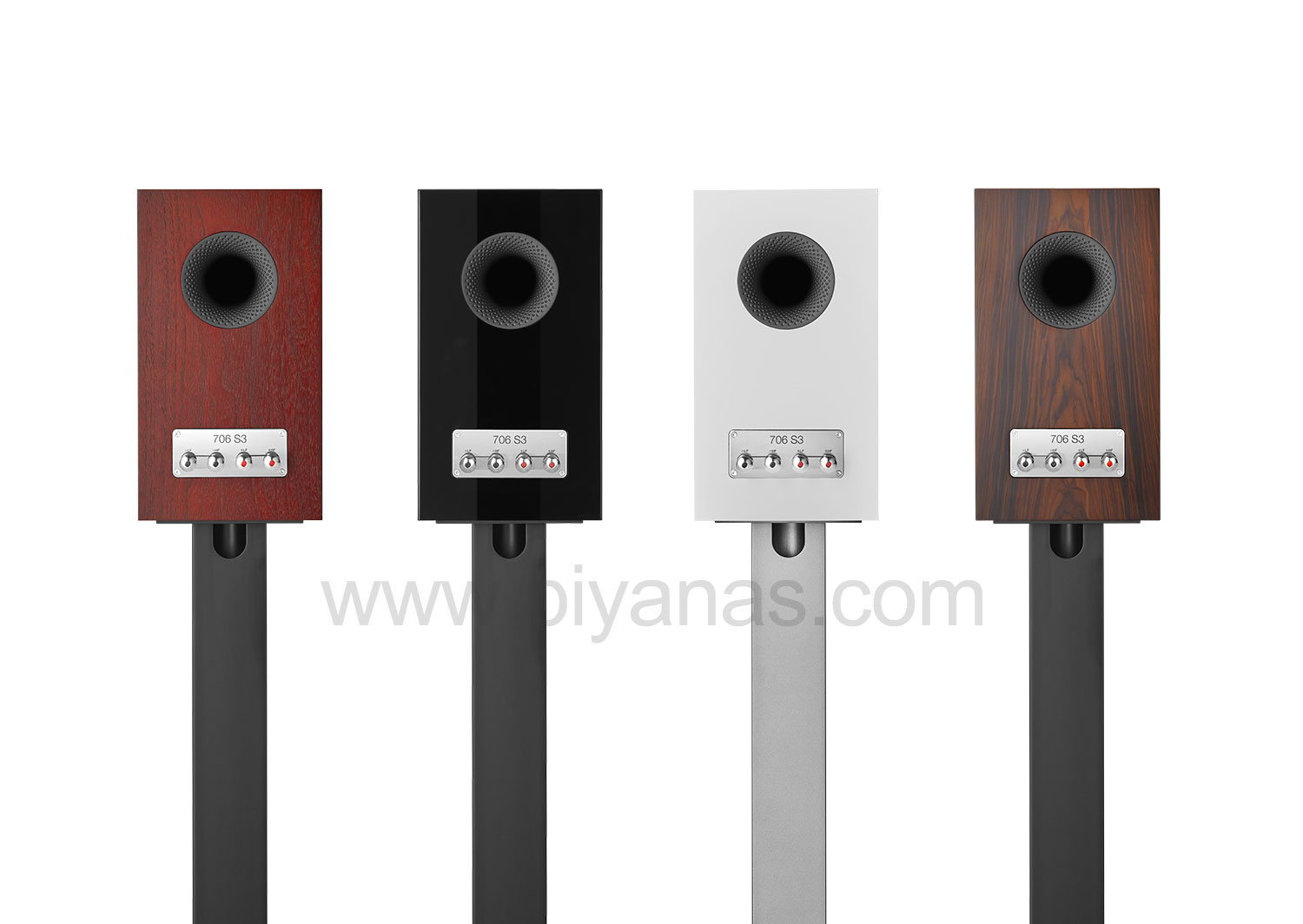

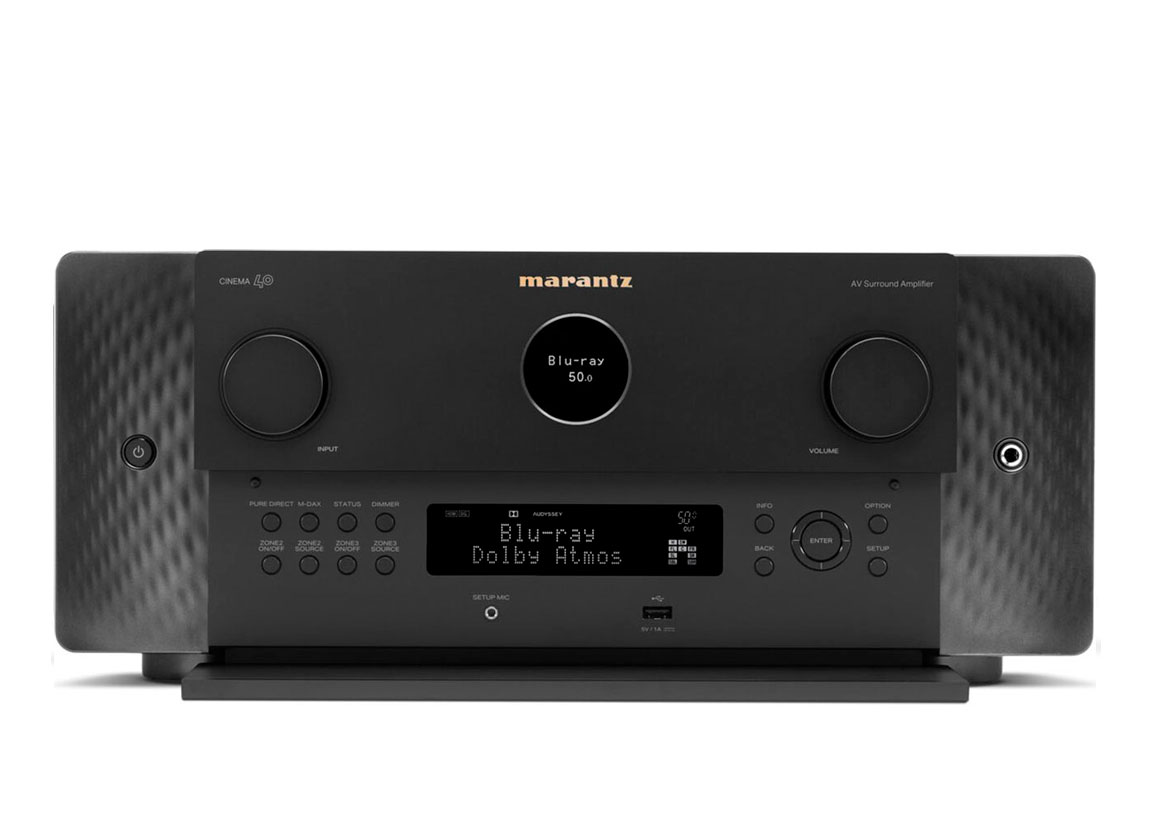

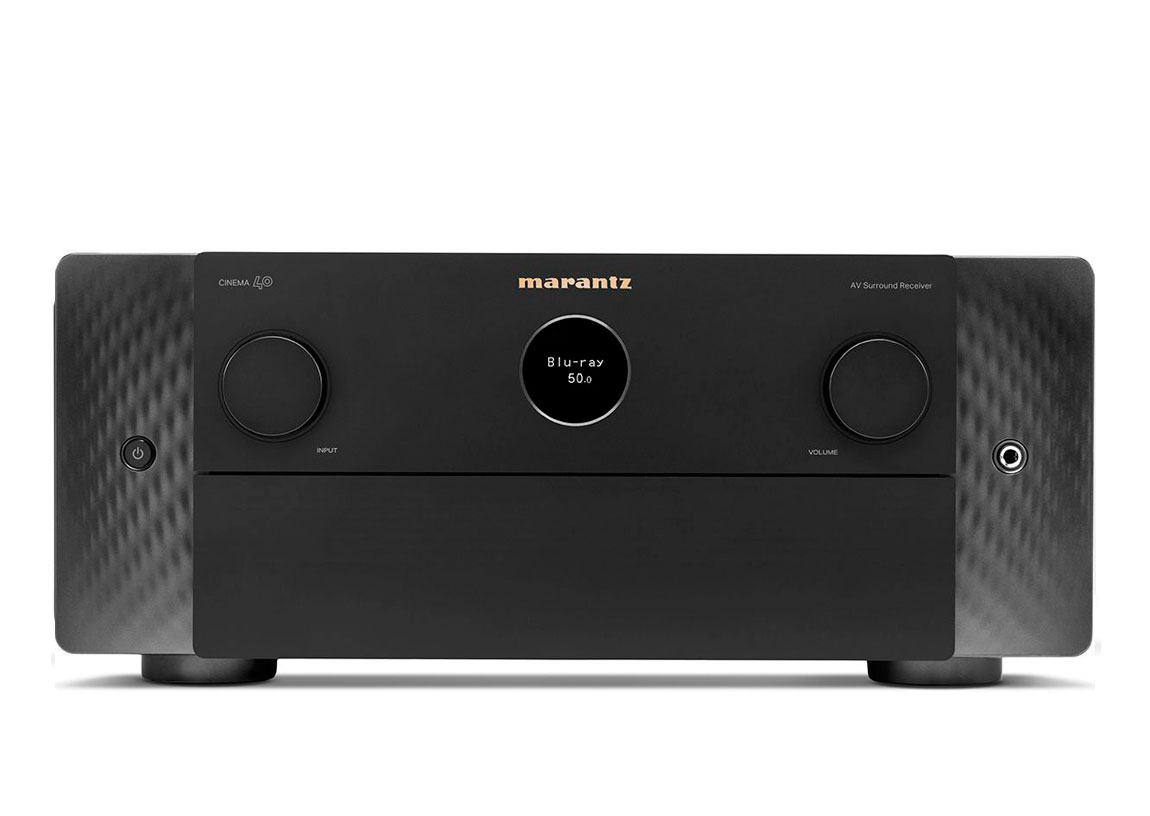

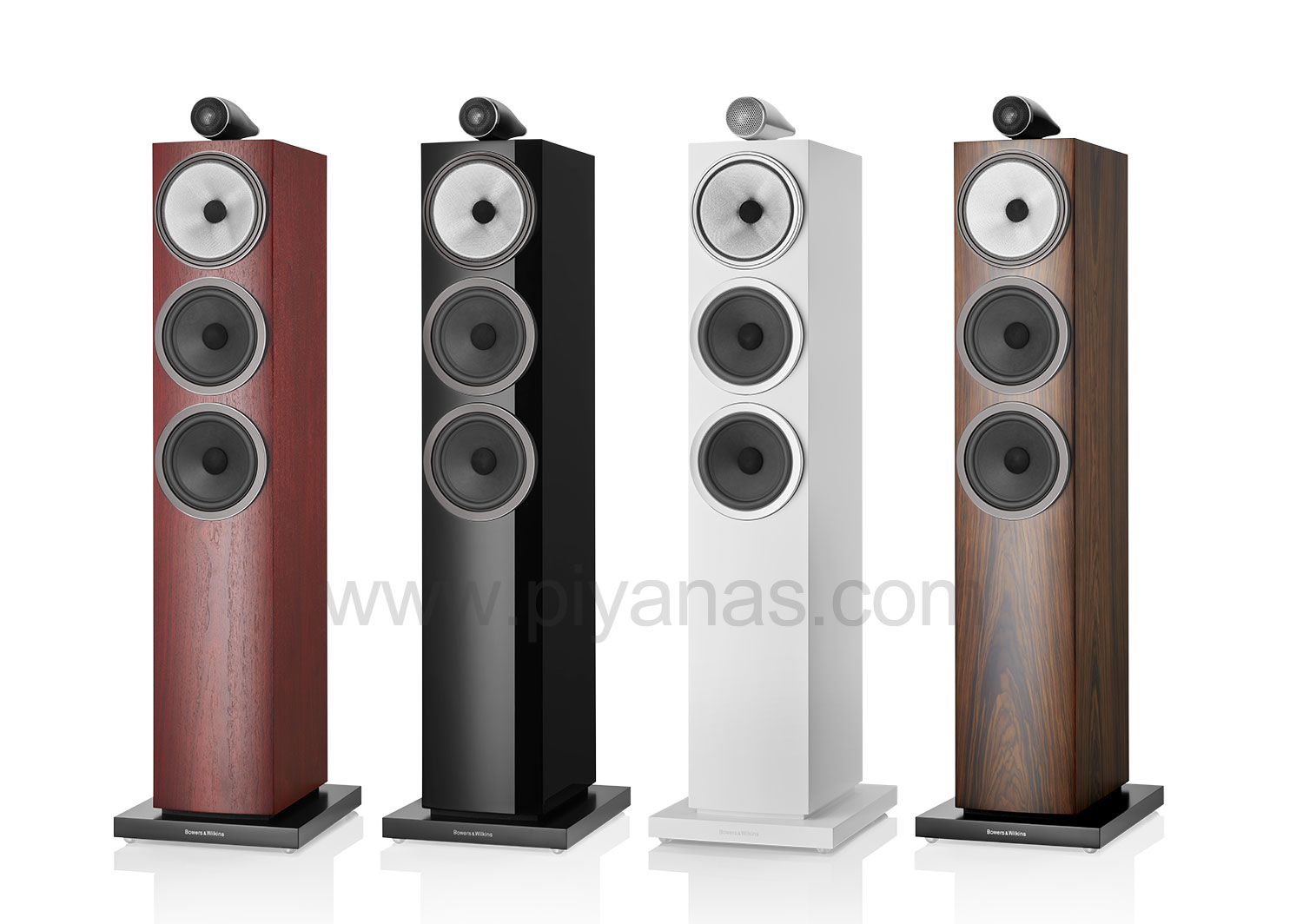

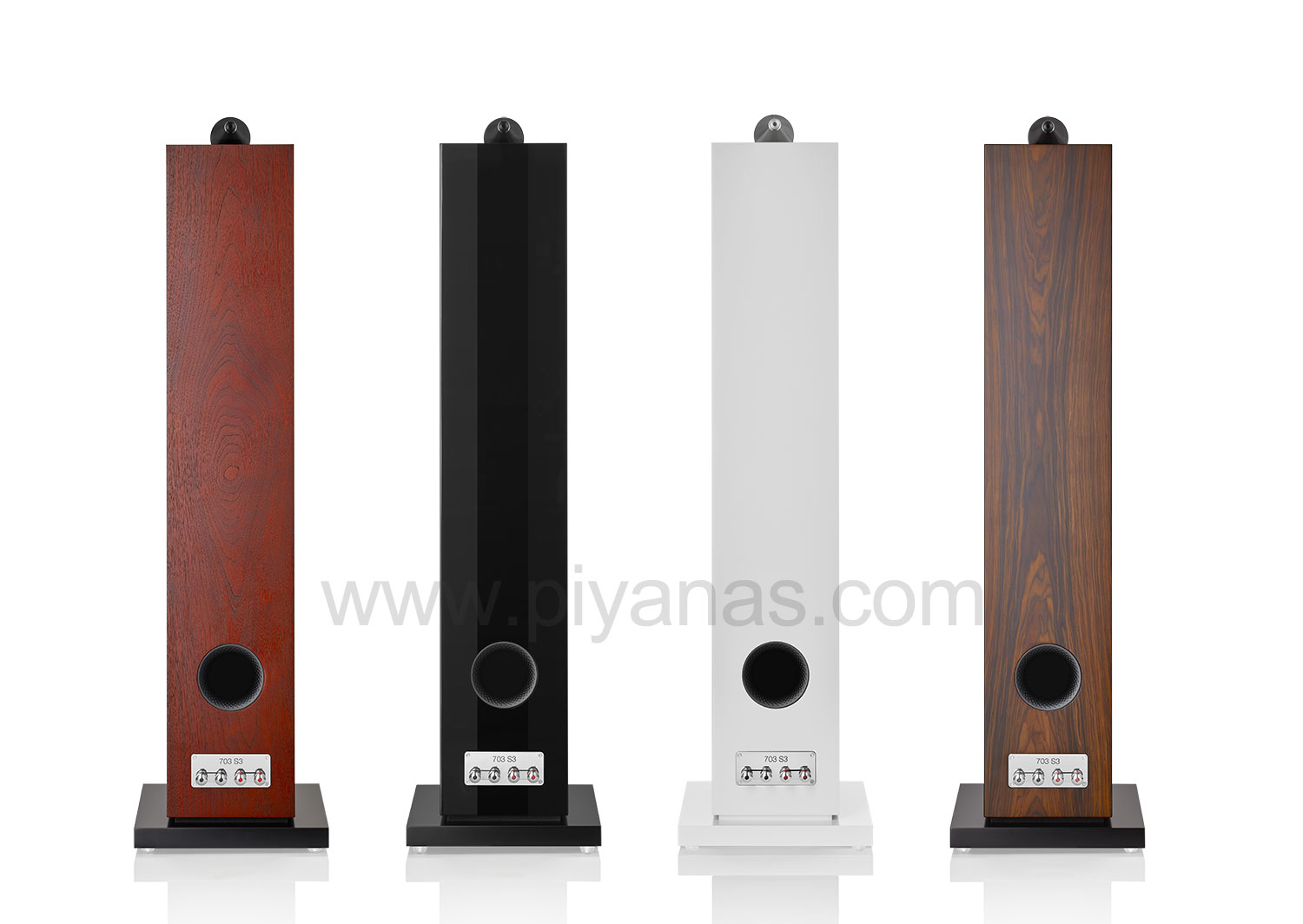

MARANTZ : CINEMA-40 + 706 S3 + HTM-72 S3 + 703 S3

Get Free B&W : DB-4S มูลค่า 99,000 บาท

Premium 9.4 Channel | 125-watts-per-channel AV receiver

Premium 9.4 channel 125-watts-per-channel amplification, Dolby Atmos, DTS:X Auro 3D, and 8K Ultra HD plus HEOS® Built-in streaming. CINEMA 40 is a statement piece and reference level A/V Receiver.

---



---

---

---

Peerless Performance

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.

---

Technology Leader

CINEMA 40 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

---

Exquisite Slimline Design

A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

---

Performance

The Marantz Sound Master meticulously tuned CINEMA 40 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

---

Style

Excellence is heard and seen. CINEMA 40 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.

---

Customizability

Thoughtfully curated connectivity options and finetuning ability allow you to make CINEMA 40 your own.

---

Effortless

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

---

Specifications

Power:

• Number of powered channels 9
• Output Power (8 ohms, 20Hz - 20kHz, 0.08% 2ch Drive)
• Output Power (8 ohms, 20Hz - 20kHz, 0.05% 2ch Drive) 125W
• Output power (6 ohms, 1 kHz, 0.7% for 2 channels) 165 W
• Output Power (6 ohms, 1 kHz, 10% 1ch Drive) 235 W
• 70% Guarantee Yes
• Discrete Power Amplifier Yes
• Class A/B amplifier topology
• Current feedback topology Yes
• Assignable Bi-Amp Drive

Multi-channel surround technologies:

• DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
• Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
• Other IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo
• Maximum number of processing channels (preamp) 11.4

Entries exits :

• 2/0 composite in/out
• Component in/out 1 / 0
• HDMI 7/3 input/output
• Multi-room video output via HDMI Yes
• Analog input / Fixed level output 6 inputs / 0 outputs
• Phono input (MM) Yes
• Digital input: Optical / Coaxial 2 / 2
• Multi-room output: Analog / Digital 2 / 0
• 11.4 multi-channel preamp output
• Subwoofer output 4 (independent)
• 7.1 multi-channel input Yes
• Number of terminals 11
• Assignable A/B Speakers
• Assignable multi-channel speaker terminals
• USB-A front inputs
• USB Audio Yes
• FM tuner with RDS No
• DAB+ Tuner No

HDMI:

• Total HDMI inputs / No. Support 8K 7 / 7
• Support HDCP2.3 Yes
• Main/Zone 2 / 1 HDMI Outputs
• Analog Video to HDMI Conversion Yes
• HDMI Upscaling 1080P/4K to 8K
• Maximum resolution @ framerate 8K @ 60Hz, 4K @ 120Hz
• eARC audio return channel
• Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
• ALLM (Auto Low Latency Mode) Game pass-through Yes
• Variable Refresh Rate / Quick Frame Transport Yes / Yes
• HDMI Standby Mode Yes
• CEC Yes
• DSD Audio over HDMI Yes
• LipSync automatic synchronization Yes

Performance technologies:

• Copper Plated Chassis No
• Toroidal Power Transformer No
• Hyper Dynamic Amplifier Modules (HDAM) (list version) Yes
• Pure direct mode Yes
• Gold Plated RCA Terminals Yes
• Clock Jitter Reducer Yes

Acoustic correction:

• Audyssey MultEQ XT32
• Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
• Audyssey LFC Yes / Yes
• Dirac Live Support Yes
• Variable Cross Over Yes
• Enhanced Bass Redirection Yes
• Bass Sync Yes

Music file support:

• MP3 / WMA / AAC lossy formats
• Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
• DSD Audio 2.8MHz / 5.6MHz
• Lag-free playback FLAC, WAV ,ALAC ,DSD
• Improved compressed audio: MDAX2 Yes
• Network Audio Sharing Yes

Streaming services:

• HEOS Multiroom and Streaming Yes
• AirPlay Audio Streaming Airplay 2
• TuneIn Internet Radio
• Spotify* Spotify Connect
• Yes
• SiriusXM Yes
• Other Streaming Services * Amazon Music HD/
• Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
• Tested by Roon Yes

Network connectivity:

• Ethernet ports Yes
• Wi-Fi (include version/band) Yes
• Bluetooth (include version) Yes
• Bluetooth re-transmission for Bluetooth headphones Yes

Integration and intelligent control:

• Compatibility with Alexa / Google Voice Assistant / Apple HomePod voice assistants
• App for smartphones and tablets (iOS and Android) Marantz AVR App, HEOS
• HEOS Multi-Room Built-in Yes
• HEOS Link compatibility: IR/ IP Yes / Yes
• Multi-room zones 3
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
• Zone audio output: Speaker / Preout Yes / Yes
• Zone HDMI output from HDMI source Yes
• Control Connectivity IP Control / RS232 Control / Web Control / App Control
• IR flasher input Yes
• Marantz Remote Bus Yes
• DC Trigger 3 Output
• HDMI Diagnosis Yes

Other Features:

• 2 line FLD front display + OLED port hole
• Main screen size (diagonal in/mm)
• Secondary screen size (diagonal in/mm)
• GUI languages ​​9
• Setup Wizard Yes
• Smart selection on the remote control Yes
• Software update via USB Yes / Yes
• ECO Mode Yes
• Automatic shutdown Yes
• Sleep Mode Yes

Main Features :

• Available colors Black/Silver/Gold
• Metal Face Plate Yes
• RC-048SR system remote control
• Power consumption in W 710
• Power consumption without sound (ECO on/off) in W 65 W / 110 W
• Power consumption in standby mode in W (normal/economy mode) 0.2
• Consumption in standby mode in CEC 0.5
• Network standby power consumption in W Less than 2.0
• Maximum dimensions of the antenna horizontally: (W x D x H) in mm 440x414x185
• Maximum dimensions of the vertical antenna: (W x D x H) in mm 440x414x254
• Maximum dimensions without antenna: (W x D x H) in mm 440x401x185
• Weight in kg 15.1

Contents of the box:

• Amplifier,
• Remote Control, Batteries,
• Wire Labels,
• Quick Start Guide,
• Audyssey Microphone , Microphone Stand , 2 Detachable External Antennas , Mains Cord
