Featuring reference SVS subwoofer technology, PB-5000 R|Evolution delivers earth-shaking output with extreme low-frequency extension down to 13 Hz rendered with pinpoint control and accuracy. Demolishes all benchmarks for ported subwoofers in its class.
All-new high-excursion 15-inch driver with dual voice coils in overhung motor. 2,000 Watts Continuous, 5,000+ Watts Peak Dual Monoblock Amplifier with discrete MOSFET Output. Extreme Subwoofer Intelligence from 295 MHz Analog Devices DSP. Smartphone app tuning and control.
Effortless Output from High-Excursion 15-inch SVS Driver
The most formidable, ported cabinet subwoofer driver in its class features all-new dual edge wound voice coils, suspension, basket, and extreme-excursion surround to achieve visceral sound pressure levels with pinpoint accuracy.
Lightweight and rigid 15-inch glass fiber composite cone with optimal stiffness-to-mass ratio for maximum efficiency and acoustic linearity
Two-piece toroidal ferrite electromagnetic motor generates massive force with precise control, remaining authoritative yet detailed and controlled
Precision engineered dual edge wound voice coils ensure stable transfer of electro-magnetic current to the 15-inch driver for authoritative output and exacting driver control.
6-layer bi-filar dual voice coils conduct the massive power from the dual-mono amplifier to the motor with maximum thermal efficiency, resulting in effortless acoustic output
Flat edge wound aluminum voice coil wire maximizes density for optimal magnetic field strength and thermal capacity
Dual Mono STA-2000D Amplifier Design with Discrete MOSFET Output
A revolutionary new amplifier platform with technology adapted from the flagship SVS subwoofers. Rated conservatively at 2,000 Watts Continuous, 5,000+ Watts Peak, the innovative design maximizes driver potential with refined behavior and pristine response at any volume.
High Current Output of Fully Discrete MOSFET transistors with efficiency of Class D Amplifier generates immense sonic force with precise control for outstanding real-world performance at all volumes.
Each monoblock amp drives one of the dual voice coils within the motor to assert pinpoint control and maximize power fed to the driver
Eight 60 Amp 200 Volt MOSFET transistors deliver extreme high current for reference-level output with maximum efficiency
Performance Enhancing Switch Mode Power Supply
Regardless of the power coming out of your household circuit, the SB-5000 R|Evolution always maintains peak performance and remains impervious to voltage fluctuations.
Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality and audio performance
Ensures clean and consistent 160V rail voltage and optimal power delivery from a standard 15-amp home circuit
Power-Factor-Correction (PFC) time aligns the AC voltage to the AC current resulting in less heat, greater efficiency, reliable peak power output, and the ability to maintain rated power over a wide-range of voltages
FEA optimized convection cooling system has no exterior heatsinks, an extraordinary feat for such a powerful amplifier
Extreme Subwoofer Intelligence - 295 MHz Analog Devices DSP
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.
Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
Multi-point thermal, voltage, and current monitoring systems ensures maximum output and efficiency
Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity

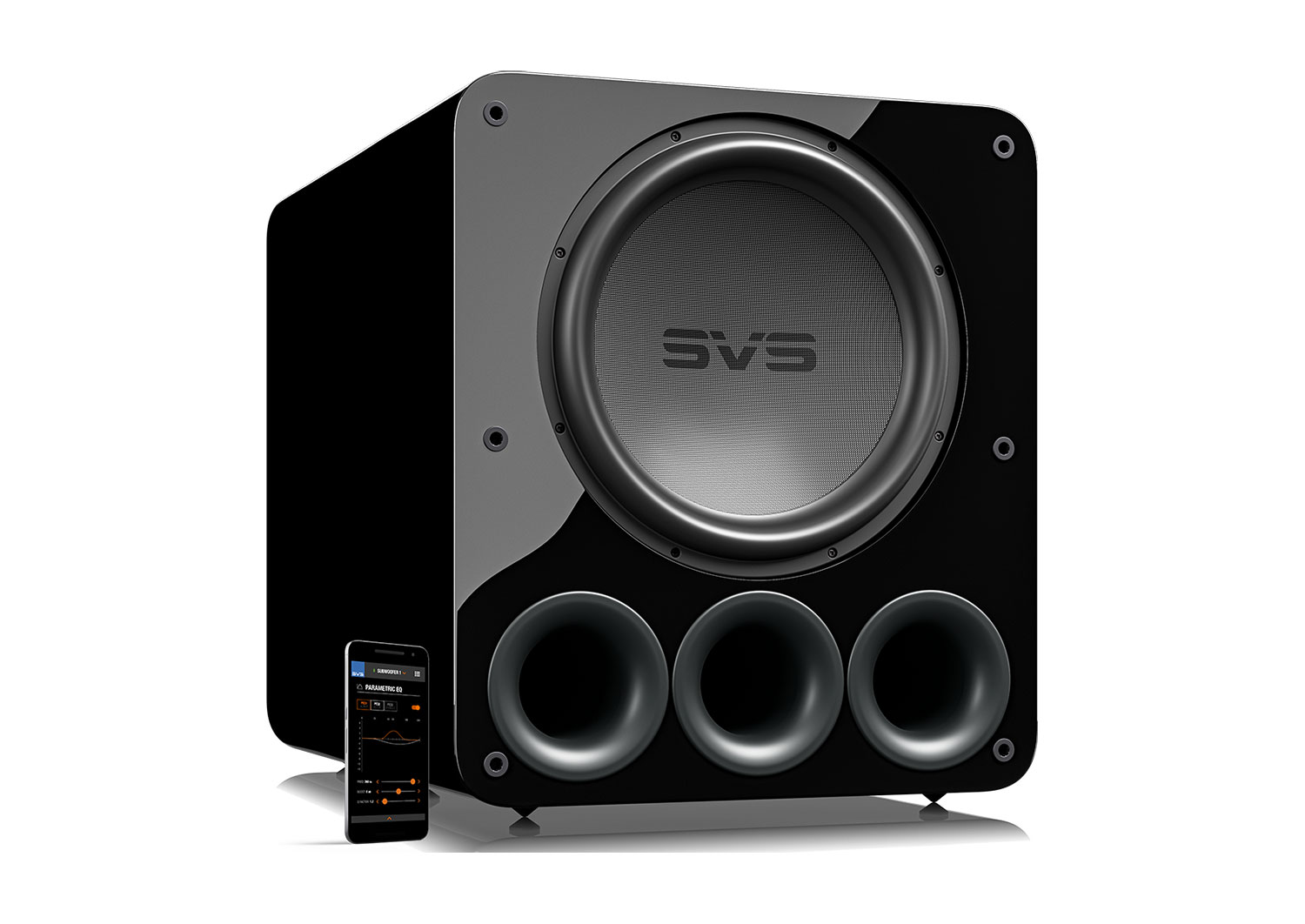

SVS Subwoofer Smartphone Control App
Convenient subwoofer tuning and control from the comfort of your favorite seat. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.
Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, tuning modes, power management settings, and more.
Includes three convenient memory presets for fast and easy system adjustments to match your listening preferences – music, movies, night mode, and more

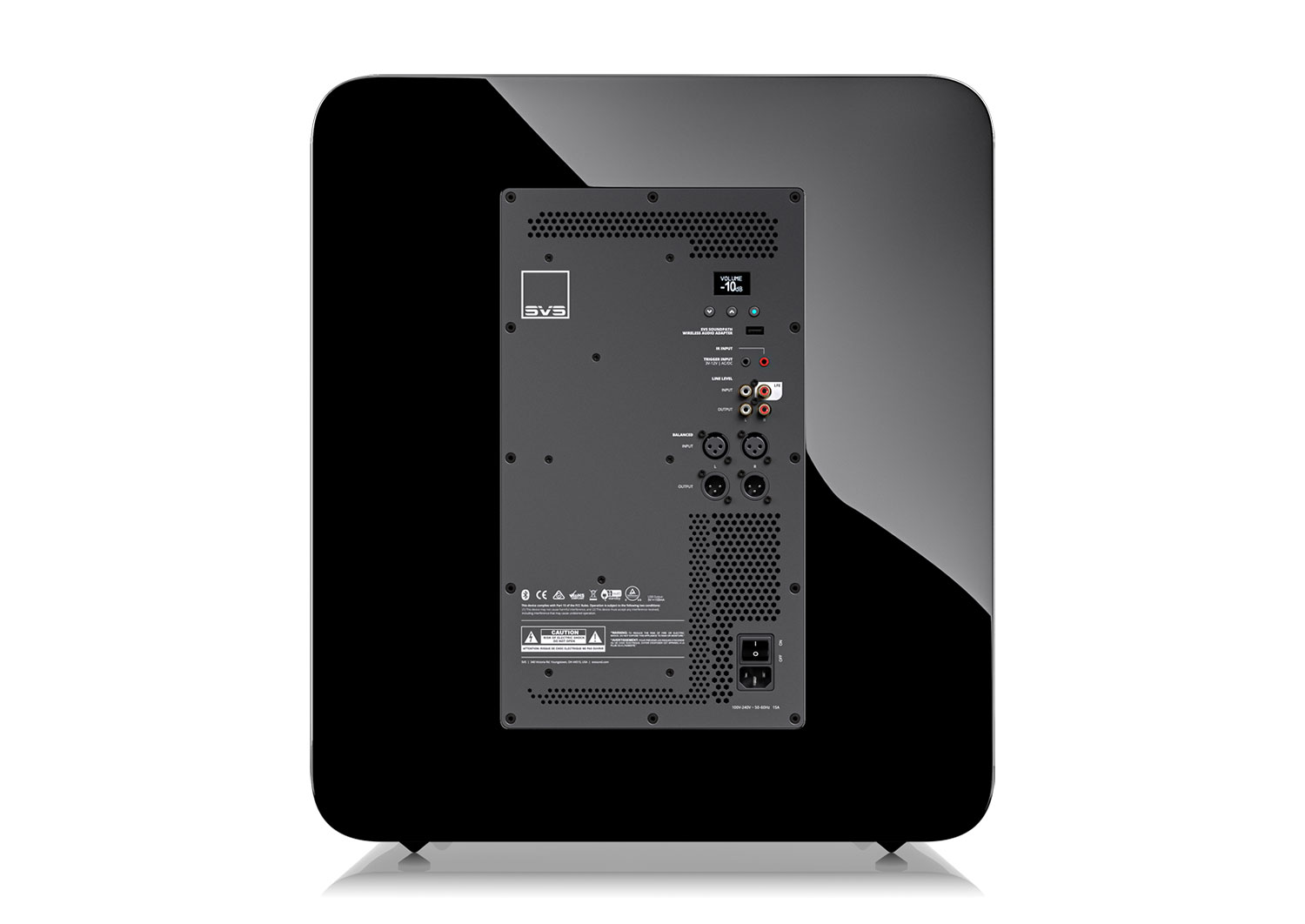

Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function.
SVS Subwoofer Auto EQ Room Correction
Achieves pristine fidelity by resolving acoustic issues caused by your room in a few easy steps.
Automatically tunes subwoofer output using your smartphone microphone or an external microphone and the SVS subwoofer app
Applies equalization, capitalizes on available room gain, and shapes in-room frequency response at the main listening positions for optimal in-room performance
Will be available soon via an over-the-air SVS Subwoofer Control App update

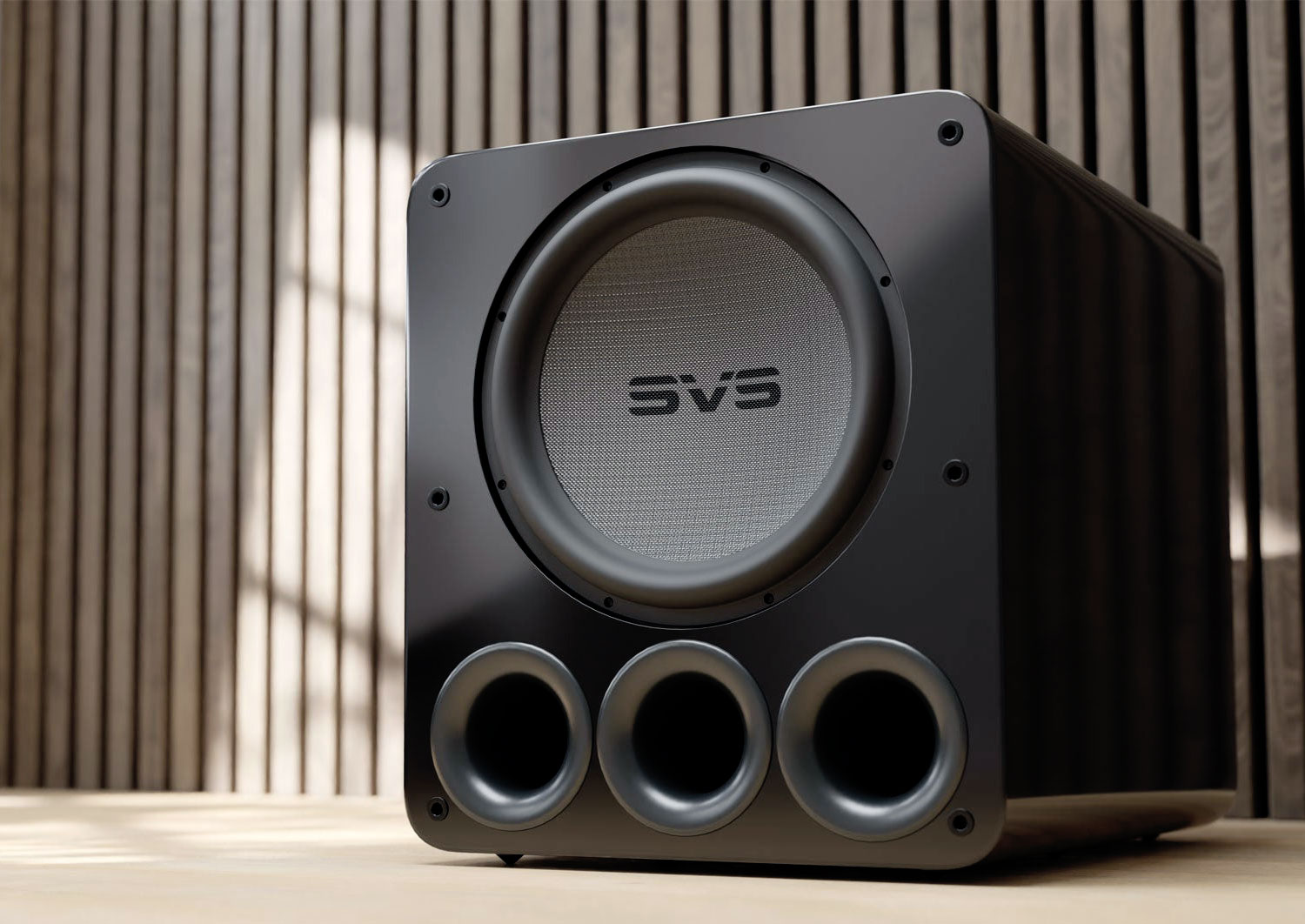

Triple-ported cabinet design results in subterranean deep bass extension with room-energizing output that fills even the largest home theaters.
Double-thick 2-inch MDF front baffle and rigid internal bracing to support the massive drive unit and to ensure an acoustically inert environment.
Three high-flow 3.5-inch rounded ports enable massive airflow for greater dynamic headroom.
Highly reinforced internal design and acoustic insulation eliminates all coloration or resonance from the cabinet, even when the deepest low frequencies are played at reference volume.
Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
Custom elastomer feet reduce noise artifacts within a room.
Subwoofer Specifications:
Piano Gloss Black and Black Ash options
Front Firing 15-inch high-excursion driver
Triple High-flow 3.5-inch ports
Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function.
Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
Robust Medium Density Fiberboard (MDF) cabinet construction with internal bracing for resonance free performance at highest drive levels.
Screw-in Iso-elastomer feet reduce noise artifacts and improve stability
Dimensions (with grille): 23.4” (595mm) H X 20.5” (520mm) W X 28.7” (727mm) D
Dimensions (without grille): 23.4” (595mm) H X 20.5” (520mm) W X 27.6” (701mm) D
Shipped Dimensions: 29.1” (738mm) H X 26.0” (661mm) W X 36.0” (915mm) D
Weight (unboxed with Grille): 153.9lbs (69.8kg)
Shipped Weight: 174.3lbs (79.1kg)
Amplifier Specifications:
Massively powerful 2,000-watt continuous Class D design with over 5,000 watts of Peak Power.
High resolution 295Mhz Analog Devices Audio DSP with double precision 56bit filtering, with over 5x the processing power of our previous subwoofers, the most advanced subwoofer processor available for perfect audio reproduction.
DSP monitors every function of the amplifier ensuring precisely regulated clean voltage is delivered to and from the switch mode power supply and maximum current is pushed to the driver’s voice coils.
DSP Continuously runs complex power management algorithms and multi-point thermal, voltage, and current monitoring systems to optimize AC voltage delivery to the power supply for continuous peak performance with maximum performance and greatest efficiency.
Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity.
Dual-mono discrete Class D amplifiers create effortless and endless power from eight massive 60A 200V MOSFETs, resulting in lower EMI and highest efficiency while providing effortless power each voice coil, producing SPLs and low frequency output with pristine clarity well beyond reference listening levels.
All new Switch Mode Power Supply (SMPS) includes a two-stage 100v-240v full range active Power Factor Correction (PFC) which pre-regulates mains to solid 390V DC regardless of mains voltage or quality, ensuring a consistent 160V rail voltage for the dual-mono amplifiers.
Power-Factor-Correction (PFC) time aligns the AC voltage to the AC current resulting in less heat, greater efficiency, peak power output, and the ability to maintain rated power over a wide-range of AC voltages.
Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality and audio performance.
New convective cooling plate design pulls cool outside air through vents at the bottom of the amplifier plate, flowing over the amplifier components and internal heat sinks, eliminating the need for an external heatsinks.
Customer EQ and DSP limiter settings specifically for the 5000 series allow the subwoofer to take control of a room and pressurize it with accurate, heart-pounding, acoustically tuned bass.
Unbalanced RCA 10kohm input impedance (compatible with consumer and professional audio up to 4Vrms inputs)
Balanced XLR 14kohm input impedance (compatible with consumer and professional audio up to 4Vrms / +14dBu inputs)
OLED and control interface with easy control of the most important features
USB provides power for the SVS SoundPath Wireless Audio Adapter (sold separately) which eliminates the need for a cable run to the subwoofer from the source component.
Auto/On and Trigger options through App for maximum installation convenience (3.5mm trigger Input 3-12V AC/DC)
3.5mm IR input for easy integration with control systems
